CRAWLER TYPE LIFTING PLATFORM
Easy to Operate: Featured with ergonomic integrated control handle and stepless speed regulation. The lifting and travelling speed can be adjusted flexibly. Operators without professional experience can get skilled quickly after simple guidance.
Industrial & Field Work: Ideal for equipment inspection and maintenance around mines, field power stations and mountain facilities on remote unpaved roads.
Model:HTPTO6
Load:450kg
Weight:2770kg
Lifting height:6m
- Overview
- Recommended Products
CRAWLER TYPE LIFTING PLATFORM
Product Overview
Welcome to our high-performance Crawler Lifting Platform, a fully self-propelled aerial work equipment specially designed for complex and uneven terrains. It integrates two core functions: full electric travelling and electric hydraulic lifting. Equipped with robust rubber crawler tracks, this platform can travel smoothly on unpaved surfaces such as mud ground, sand and gravel roads, potholed roads and gentle slopes, breaking the usage limitations of traditional wheeled lifting platforms.
All operation controls are concentrated on the handle mounted on the working platform. Operators can complete travelling, steering and lifting work while standing on the platform, without the need for external traction or external power supply. The machine delivers stable lifting movement and reliable load-bearing capacity. Equipped with a complete set of safety protection devices, it features excellent trafficability, high flexibility and outstanding safety performance. This crawler lifting platform is widely used in field construction, garden maintenance, outdoor venue operation, infrastructure construction, mountain facility maintenance and other complex working conditions. It is the optimal choice for working scenarios where ordinary wheeled aerial equipment cannot operate normally.
Whether you are a project manager, garden maintenance staff, outdoor construction team member, field property supervisor or industrial and mining administrator, our crawler lifting platform can provide you with a one-stop aerial work solution that is safe, efficient and fully adaptable to all kinds of complex terrains. Different from conventional wheeled lifting platforms, the crawler design greatly enhances ground grip and terrain adaptability, making it competent for various harsh outdoor environments. The fully electric drive system ensures low noise and zero emission, so it can work normally in ecological parks and environmentally sensitive areas. With solid overall structure and mature supporting parts, this equipment has become a reliable workhorse for outdoor and field aerial operations across multiple industries.
| Model | Load | Weight | Lifting height | Platform size | Dimensions |
| HTPTO6 | 450kg | 2770kg | 6m | 2270*1130mm | 2780*1570*2350mm |
| HTPTO8 | 450kg | 2970kg | 8m | 2270*1130mm | 2780*1570*2470mm |
| HTPT10 | 320kg | 3270kg | 10m | 2270*1130mm | 2780*1570*2640mm |
| HTPT12 | 320kg | 3680kg | 12m | 2270*1130mm | 2780*1570*2740mm |
| HTPT14 | 220kg | 3990kg | 14m | 2630*1130mm | 3200*1650*2770mm |
Specifications and Parameters
Power Type: Full electric travelling + full electric hydraulic lifting, lithium battery / lead-acid battery optional
Rated Load Capacity: 200kg – 450kg, customized according to actual operational requirements
Standard Working Height: 4m – 14m, customized heightened mast and extended working platform are available
Body Material: High-strength manganese steel for scissor structure, wear-resistant anti-slip rubber crawler tracks for various complex grounds
Control System: Integrated handle control on the platform, stepless speed regulation. One-button operation for lifting, travelling and steering with intuitive operation logic
Braking Performance: Combined electromagnetic brake and crawler parking structure. It parks stably on slopes and soft ground to prevent sliding effectively
Overall Dimensions: Compact structure when retracted, flexible steering, able to travel normally in narrow areas and rugged roads
Main Structure: Integrated reinforced chassis with thickened and strengthened scissor arms, excellent impact resistance and torsion resistance, ensuring superior stability during high-altitude work
Compliance: Comply with national aerial work equipment safety standards, as well as international ISO and EN industry safety regulations
Product Features
Super All-terrain Trafficability: Adopting rubber crawler travelling structure with strong ground grip. It can easily adapt to unpaved terrains including sand and gravel roads, mud land, potholed surfaces and gentle slopes, breaking the site restrictions of traditional wheeled equipment.
Fully Autonomous Electric Operation: Travelling, lifting and steering are all driven by pure electricity. No manual pushing or external power supply is required. A single operator can finish the whole workflow on the platform, which saves labor and improves working efficiency greatly.
Easy to Operate: Featured with ergonomic integrated control handle and stepless speed regulation. The lifting and travelling speed can be adjusted flexibly. Operators without professional experience can get skilled quickly after simple guidance.
Comprehensive Safety Protection: Standard equipped with overload protection, lifting limiter, anti-fall oil cylinder, pothole protection, body tilt alarm, emergency stop button and full-enclosed safety guardrails. Multiple safety designs effectively eliminate potential risks during aerial work.
Low Noise & Eco-friendly: Running on pure electric power, the machine produces low noise and zero exhaust gas. It can be safely used indoors, in enclosed spaces, ecological parks and other sites with strict environmental requirements.
Sturdy & Durable: The thickened manganese steel scissor structure and reinforced chassis bear force evenly. The crawler tracks are wear-resistant and anti-aging. Core hydraulic and electrical accessories are of reliable quality. The whole machine has a low failure rate and can work frequently in harsh field environments for a long time.
Low Maintenance & Fully Customizable: Adopting modular design with neatly arranged components, daily inspection and maintenance procedures are simple. Load capacity, working height, platform size and crawler specifications can be customized as required. Extended pedals and protective accessories are also optional to meet diverse field and construction working conditions.

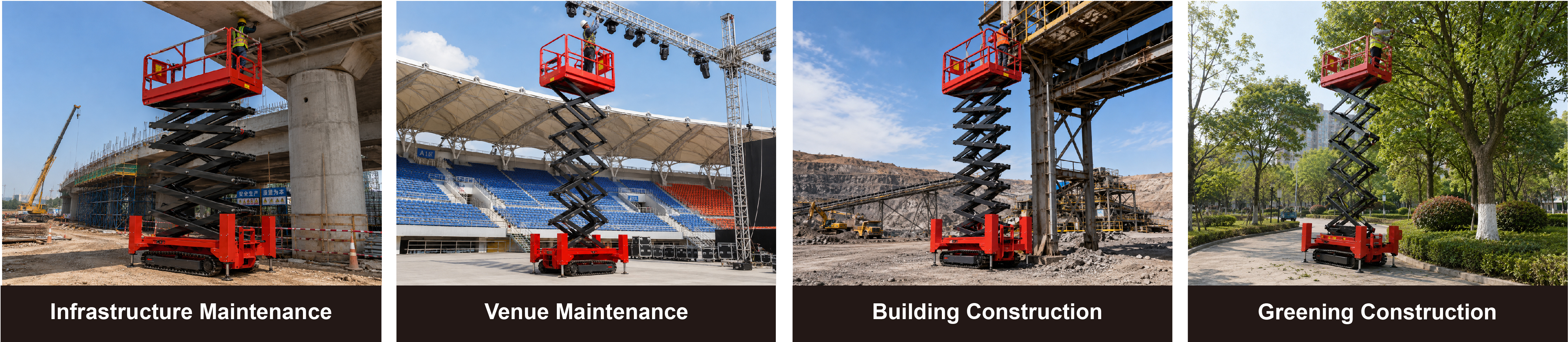

Application Scenarios
Infrastructure Construction: Used on construction sites and field infrastructure projects for equipment maintenance, pipeline laying and exterior wall construction on mud and gravel roads.
Garden Maintenance: Widely applied in large parks, scenic spots, mountain nurseries and municipal greening for tree trimming, landscape maintenance and high-altitude facility inspection.
Outdoor Venues: Suitable for exterior maintenance, decoration and lighting inspection of stadiums, exhibition centers and large amusement parks, adapting to rugged surrounding grounds.
Industrial & Field Work: Ideal for equipment inspection and maintenance around mines, field power stations and mountain facilities on remote unpaved roads.
Emergency Maintenance: Perfect for field line repair, temporary project construction and site renovation. It adapts to changing terrains and completes various temporary aerial tasks flexibly.
Frequently Asked Questions (FAQ)
Q1: What is the lead time for a customized crawler lifting platform?
A1: Standard models are always in stock and can be delivered promptly. For customized versions with adjusted working height, load capacity, crawler specifications and platform structure, the lead time is generally 4 to 8 weeks, which will be determined by specific configurations and order quantity.
A1: Standard models are always in stock and can be delivered promptly. For customized versions with adjusted working height, load capacity, crawler specifications and platform structure, the lead time is generally 4 to 8 weeks, which will be determined by specific configurations and order quantity.
Q2: Can the crawler lifting platform work for a long time on muddy roads and steep slopes?
A2: The platform can operate normally on mud ground, sand gravel and regular gentle slopes. Long-term use in deep water pits, steep landslides and roads covered with sharp broken stones is not recommended, which may cause crawler damage and vehicle sideslip.
Q3: Can we customize the load capacity, working height and platform size?
A3: Full customization is supported. We provide a complete range of models from 200kg to 350kg. The working height and platform length and width can be adjusted as requested. Extended pedals, reinforced guardrails and widened crawlers are also optional accessories.
Q4: What daily maintenance work does the crawler lifting platform need?
A4: Regularly check battery level, hydraulic oil level, scissor structure, crawler wear and braking system. Clean sediment and sundries stuck in crawler gaps in a timely manner. Avoid storing the machine with insufficient power and long-time exposure to sunlight. Replace hydraulic oil and wearing parts periodically as required.
Q5: What are the differences between lithium battery and lead-acid versions for field operation?
A5: Lithium batteries feature faster charging speed, longer cycle life and lighter overall weight. They deliver more stable endurance in low-temperature environments and require no water refilling, which is more suitable for frequent field relocation work. Lead-acid batteries have higher cost performance and are ideal for fixed sites and low-frequency usage.
Q6: Does the crawler travelling structure need extra maintenance?
A6: Yes. Regularly clean sand and stones between crawlers, check crawler tension and wear condition, and prevent foreign objects from jamming. Avoid forcing the machine to travel on sharp roads, which can effectively extend the service life of crawler tracks.
Q7: Can you provide OEM/ODM services including logo, appearance and functional module customization?
A7: Yes. We provide comprehensive OEM and ODM customization services. We can customize brand logos, body colors and nameplates. We also support personalized modifications on working height, load capacity, crawler configurations and electronic control systems. Exclusive models can be developed according to special working conditions of fields and construction sites.
