MOBILE SCISSOR LIFTING PLATFORM
Durable & Low Failure Rate: Core hydraulic components and electrical accessories are high-quality branded parts. The reinforced scissor structure is fatigue-resistant and wear-resistant, capable of adapting to long-term high-frequency continuous operation.
Commercial Venues: Ideal for renovation, lighting & circuit inspection and cleaning maintenance in large supermarkets, hotels, stadiums and exhibition centers.
Model:HT-0.5-4
Load (kg) :500
Weight (kg):670
Lifting height (m):4
- Overview
- Recommended Products
MOBILE SCISSOR LIFTING PLATFORM
Product Overview

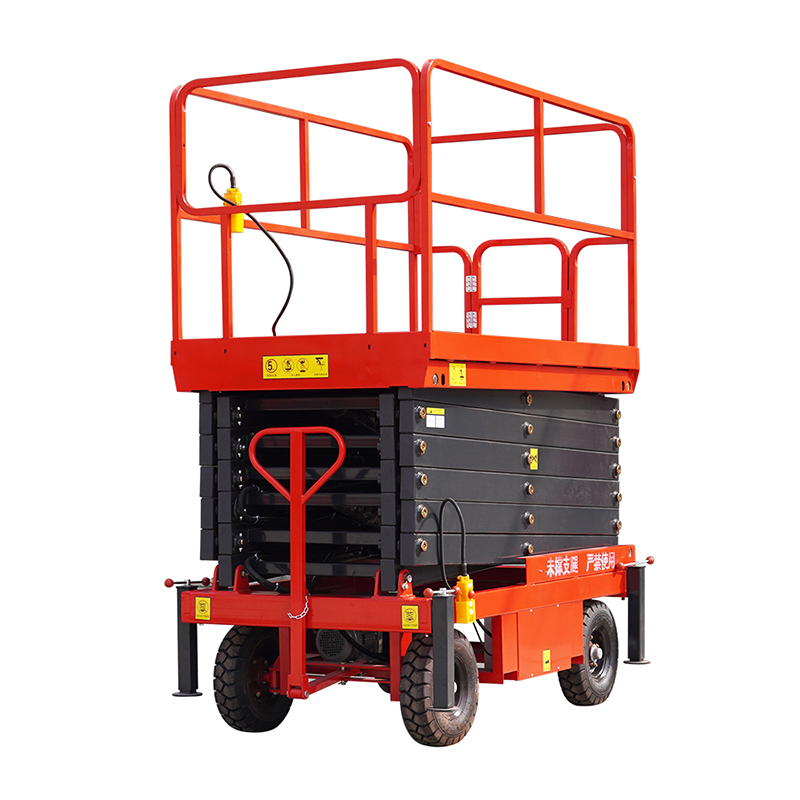

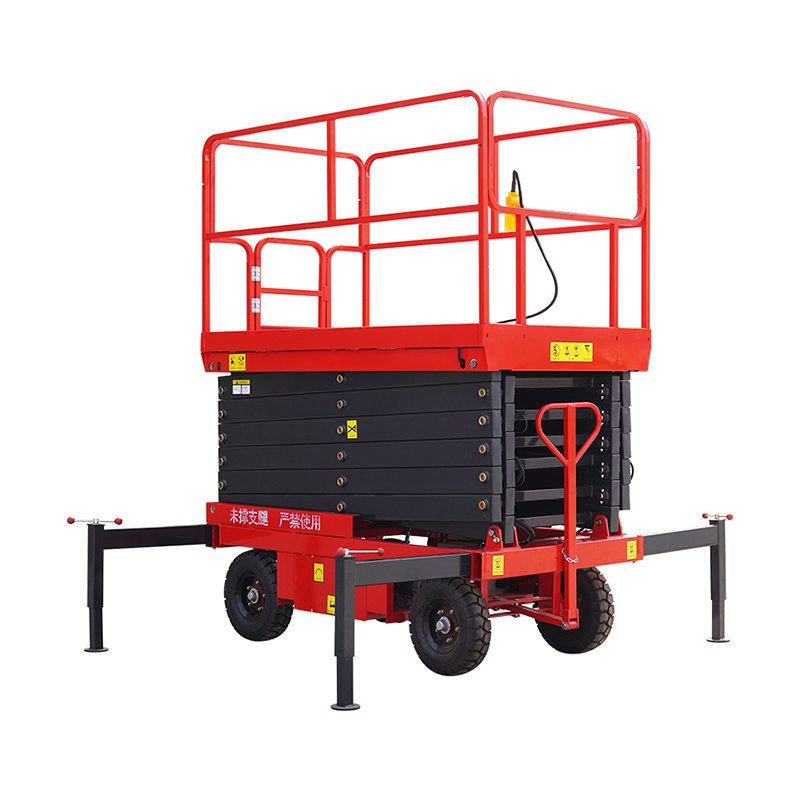

Welcome to our high-performance Mobile Scissor Lifting Platform, a versatile and widely used aerial work equipment equipped with classic scissor lifting structure. This product is available in two operation modes: electric hydraulic lifting with manual traction, and full electric travelling. It features a solid overall structure, excellent mobility and flexible field conversion. Without the need for fixed installation, the platform can be moved freely between different work areas. The lifting movement is extremely stable and it boasts outstanding load-bearing capacity, with adjustable working height to meet diverse operation demands.
Combining excellent practicality and comprehensive safety performance, this mobile scissor lift is widely adopted for factory operation and maintenance, venue decoration, high-level warehousing work, construction projects and municipal inspection. Whether you are a construction worker, property manager, factory maintenance supervisor, warehouse director or decoration practitioner, our mobile scissor lifting platform can deliver a safe, stable and cost-effective all-round solution for aerial work.
Different from fixed lifting equipment, this mobile model breaks the limitation of fixed working sites. It can be transported easily to any required area, which greatly improves the flexibility of daily operations. The mature multi-layer scissor structure adopts high-strength manganese steel as the main material, ensuring uniform force distribution and strong structural rigidity. The dual control design of platform and ground operation makes the equipment easier to operate for all staff. With low noise and zero emission during electric operation, it is friendly to indoor environments; meanwhile, the whole machine is designed with wind and rain resistance, so it can also work reliably in outdoor construction sites and municipal roads. Thanks to reliable quality, low failure rate and strong adaptability, it has become one of the most mainstream aerial work tools in various industries.
| Model | Load (kg) | Weight (kg) | Lifting height (m) | Platform size (mm) | Dimensions (mm) |
| HT-0.5-4 | 500 | 670 | 4 | 2010*830 | 2016*1000*1120 |
| HT-0.5-6 | 500 | 730 | 6 | 2010*830 | 2016*1000*1170 |
| HT-0.5-6.8 | 500 | 780 | 6.8 | 2010*830 | 2016*1000*1170 |
| HT-0.5-8 | 500 | 860 | 8 | 2010*830 | 2016*1000*1260 |
| HT-0.5-9 | 500 | 1080 | 9 | 2010*830 | 2016*1000*1480 |
| HT-0.5-10 | 500 | 1300 | 10 | 2010*1130mm | 2016*1290*1540 |
| HT-0.3-11 | 300 | 1400 | 11 | 2010*1130mm | 2016*1290*1660 |
| HT-0.5-12 | 500 | 2050 | 12 | 2500*1210 | 2500*1360*1780 |
| HT-0.5-14 | 500 | 2540 | 14 | 2845*1420 | 2845*1620*1895 |
| HT-0.3-16 | 300 | 2700 | 16 | 2845*1420 | 2845*1620*2055 |
| HT-0.3-18 | 300 | 3900 | 18 | 3060*1620 | 3060*1800*2120 |
| HT-1.0-6 | 1000 | 1130 | 6 | 2010*1130mm | 2016*1290*1310 |
| HT-1.0-8 | 1000 | 1380 | 8 | 2010*1130mm | 2016*1290*1420 |
| HT-1.0-10 | 1000 | 1580 | 10 | 2010*1130mm | 2016*1290*1620 |
| HT-1.0-12 | 1000 | 2400 | 12 | 2462*1210 | 2465*1360*1780 |
| HT-1.0-14 | 1000 | 2800 | 14 | 2845*1420 | 2845*1620*1895 |
Specifications and Parameters
Power Type: Electric hydraulic lifting, optional manual traction / full electric travelling; lithium battery and lead-acid battery are both available
Rated Load Capacity: 300kg – 1000kg, customized according to actual operational requirements

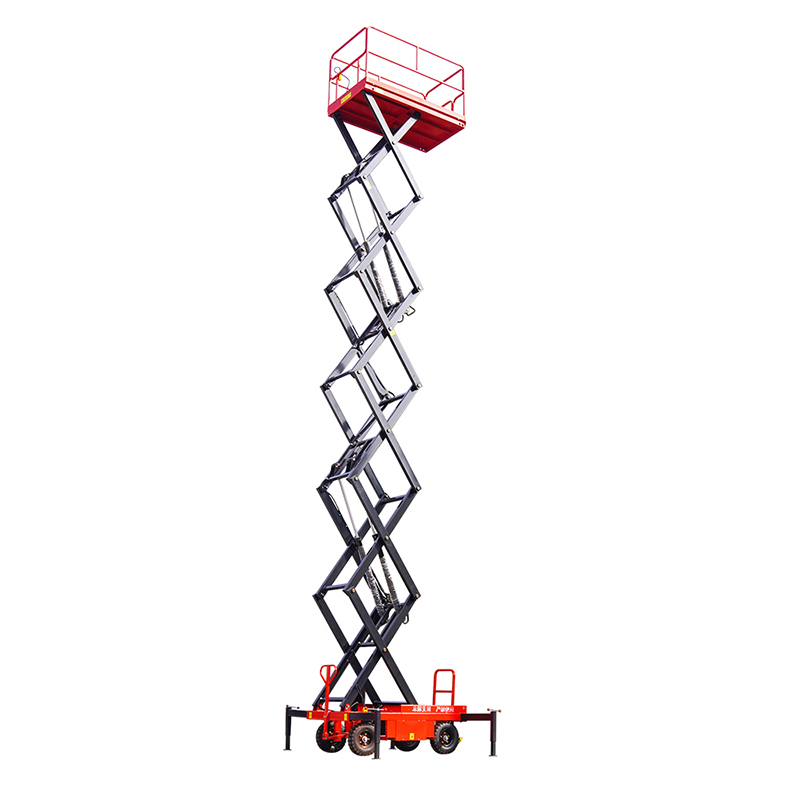

Standard Working Height: 4m – 18m, customized heightened scissor arms and widened extended working platforms are available
Body Material: High-strength manganese steel for scissor main body, equipped with wear-resistant anti-slip solid wheels / pneumatic wheels

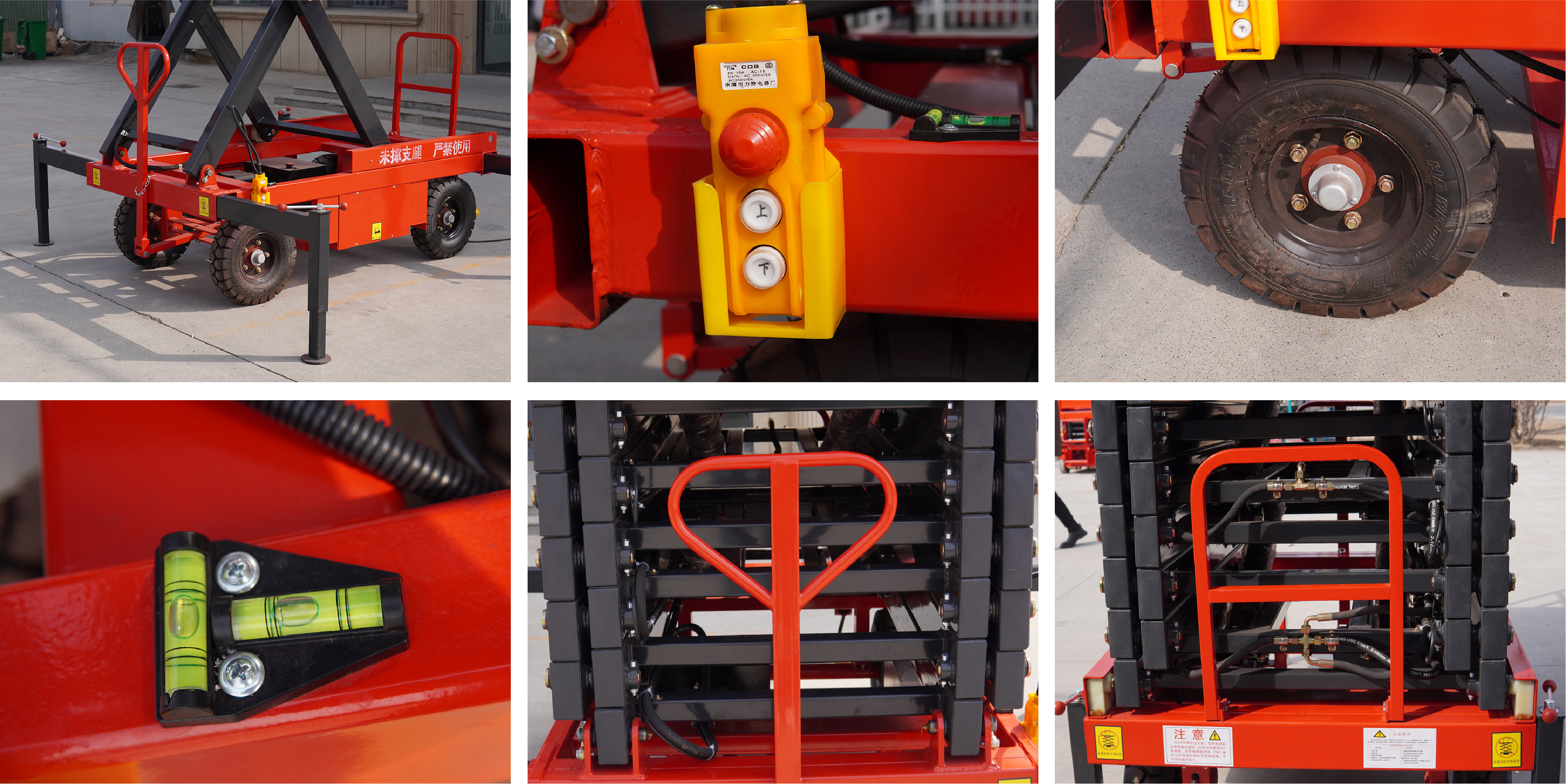

Control System: Dual control design on platform and ground. The handle operation is intuitive, supporting one-button lifting, start and stop
Braking Performance: Combined mechanical and electromagnetic dual brake system. It parks firmly and prevents sliding effectively on slopes and flat ground
Overall Dimensions: Regular main structure with moderate size after retraction, able to pass through standard passages and cargo elevators smoothly
Main Structure: Multi-layer thickened scissor arms and integrated reinforced chassis. It has excellent impact resistance and torsion resistance, ensuring superior stability during high-altitude work
Compliance: Comply with national safety standards for aerial work equipment, as well as international ISO and EN industry safety regulations
Product Features
Sturdy Structure & Strong Load Capacity: Adopting classic multi-layer scissor mechanical structure, the machine bears force evenly. The high-strength manganese steel material enhances overall rigidity. It maintains stable lifting even under heavy load, and can support medium and heavy cargo lifting as well as multi-person simultaneous operation.
Flexible Movement & Convenient Transition: Equipped with professional wheel sets. The manual traction version is easy to push and pull, while the full electric version can move independently. No large transportation equipment is required. It can be transferred quickly among factories, construction sites and buildings, free from the restriction of fixed sites.
Dual Control & Easy Operation: Featured with dual control modes including platform operation and ground remote control. The control handle has clear logic. No professional training is needed, and operators can master lifting and start-stop functions in a short time.
Comprehensive Safety Protection: Standard equipped with hydraulic anti-fall oil cylinder, lifting limiter, overload protection, emergency stop button, full-enclosed safety guardrails and pothole protection devices. Multiple safety designs eliminate potential aerial work risks and fully protect the safety of personnel and equipment.
Wide Adaptability for Indoor & Outdoor Use: The fully electric hydraulic system runs with low noise and zero exhaust gas, so it can be safely used in indoor warehouses, shopping malls and exhibition halls. With wind and rain resistant design, it also works normally in outdoor construction sites and municipal roads.
Durable & Low Failure Rate: Core hydraulic components and electrical accessories are high-quality branded parts. The reinforced scissor structure is fatigue-resistant and wear-resistant, capable of adapting to long-term high-frequency continuous operation.
Fully Customizable for Diverse Conditions: Load capacity, working height, platform size and wheel sets can be configured as required. Extended platforms, guardrails, warning lights and other accessories are optional to meet aerial work and cargo lifting demands in different industries.

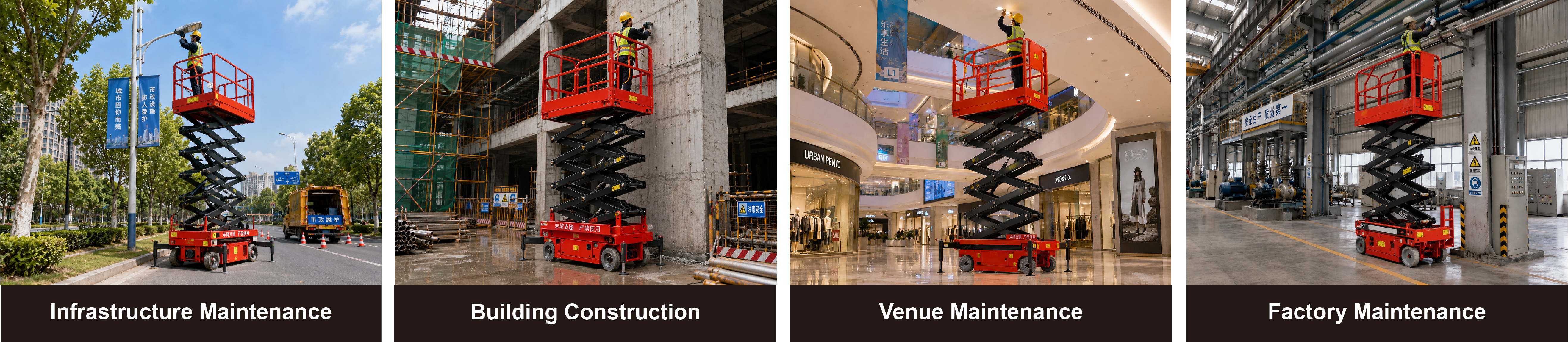

Application Scenarios
Industrial Plants: Used for equipment maintenance, production line construction, heavy material high-level transportation and pipeline laying in workshops, suitable for both indoor and outdoor aerial work.
Warehouse & Logistics: Applied to high-level goods sorting, heavy pallet lifting and shelf installation & maintenance in stereoscopic warehouses, effectively improving warehousing efficiency.
Commercial Venues: Ideal for renovation, lighting & circuit inspection and cleaning maintenance in large supermarkets, hotels, stadiums and exhibition centers.
Construction Projects: Used for interior and exterior wall construction, on-site equipment installation and temporary high-altitude erection. It replaces traditional scaffolding and improves operational safety.
Municipal Maintenance: Perfect for street lamp inspection, traffic facility maintenance, landscape renovation and public facility patrol, featuring flexible and efficient outdoor mobile operation.
Frequently Asked Questions (FAQ)
Q1: What is the lead time for a customized mobile scissor lifting platform?
A1: Standard models are always in stock and can be delivered promptly. For customized versions with adjusted working height, load capacity, widened platform and functional modification, the lead time is generally 4 to 8 weeks, which will be determined by specific configurations and order quantity.
A1: Standard models are always in stock and can be delivered promptly. For customized versions with adjusted working height, load capacity, widened platform and functional modification, the lead time is generally 4 to 8 weeks, which will be determined by specific configurations and order quantity.
Q2: Can the mobile scissor lifting platform work outdoors in rainy and low-temperature environments?
A2: The equipment is designed with basic waterproof, anti-freeze and anti-rust performance. It can work normally in light rain and conventional low temperature. Long-term outdoor operation in heavy rain, waterlogging, snow and extreme cold is strictly prohibited.
Q3: Can we customize the load capacity, working height and platform size?
A3: Full customization is supported. We provide multiple models with load from 300kg to 1000kg. The working height and platform length & width can be adjusted as requested. Extended platforms, warning devices and different wheel sets are also optional.
Q4: What daily maintenance work does the mobile scissor lifting platform need?
A4: Regularly check hydraulic oil level, battery level, wear of scissor arms, wheel sets and braking system, and clean sundries on the machine in a timely manner. Replace hydraulic oil and wearing parts periodically. Avoid overloading, long-time exposure to sunlight and water immersion.
Q5: How to choose between manual traction and full electric travelling versions?
A5: The manual traction version is suitable for short moving distance, fixed sites and limited budgets. The full electric version is the preferred choice for large factory areas, frequent long-distance transference and high work efficiency requirements.
Q6: Is it safe to park and operate the lifting platform on ramps?
A6: The platform is fitted with dual brake systems and can park and work on gentle slopes for a short time. It is not recommended to stay or carry out high-altitude work on steep slopes for a long time. Using the equipment on flat ground is the best choice for safety.
Q7: What are the differences between lithium battery and lead-acid battery in actual use?
A7: Lithium batteries feature faster charging speed, longer cycle life, lighter weight and more stable endurance at low temperatures, and require no water refilling, which is ideal for frequent transference. Lead-acid batteries have higher cost performance and are suitable for fixed-point and low-frequency use.
Q8: Can you provide OEM/ODM services including logo, appearance and functional module customization?
A8: Yes. We provide comprehensive OEM and ODM customization services. We can customize brand logos, body colors and nameplates. We also support personalized modifications on load capacity, working height, electronic control systems and travelling configurations. Exclusive models can be developed according to special working conditions of different industries.
