FULLY SELF-PROPELLED LIFTING PLATFORM
Flexible Trafficability: The machine is small when retracted with an ultra-small turning radius. It can work in large factory areas and outdoor sites, and also travel freely between indoor narrow aisles and different floors, featuring strong site adaptability.
Warehouse & Logistics: Applied to high-level goods sorting, shelf installation and maintenance in stereoscopic warehouses and large storage depots, adapting to dense rack areas.
Model:HTGTJZ-6
Load: 450kg
Weight: 2100kg
Lifting height:6m
- Overview
- Recommended Products

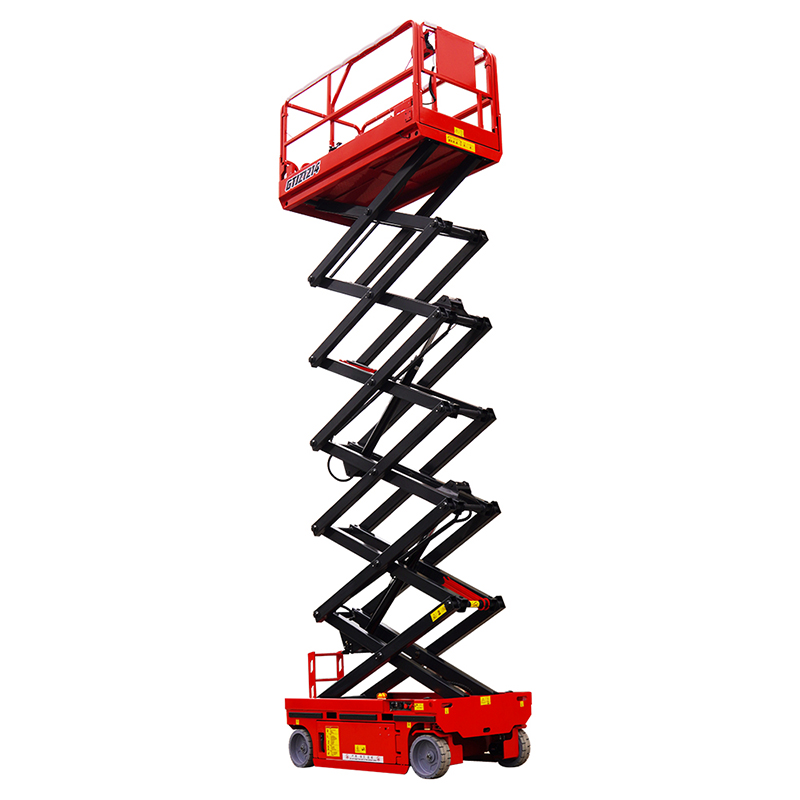

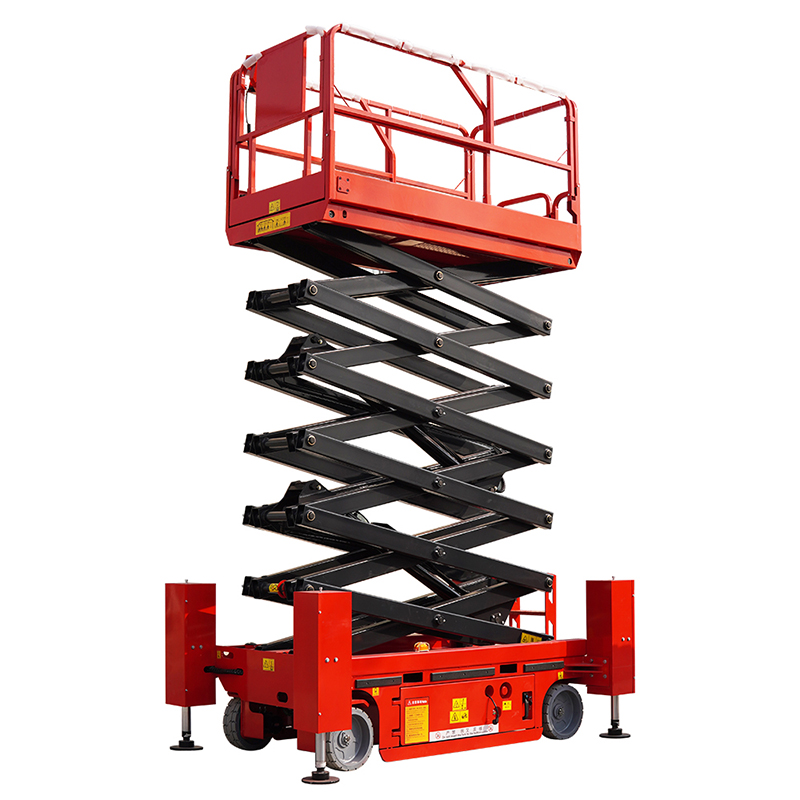

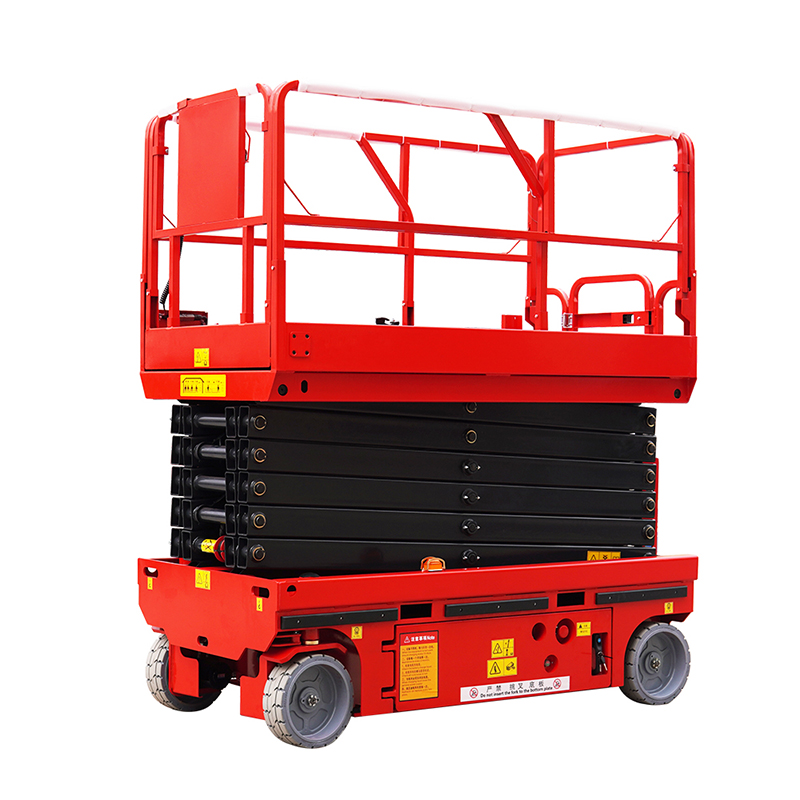

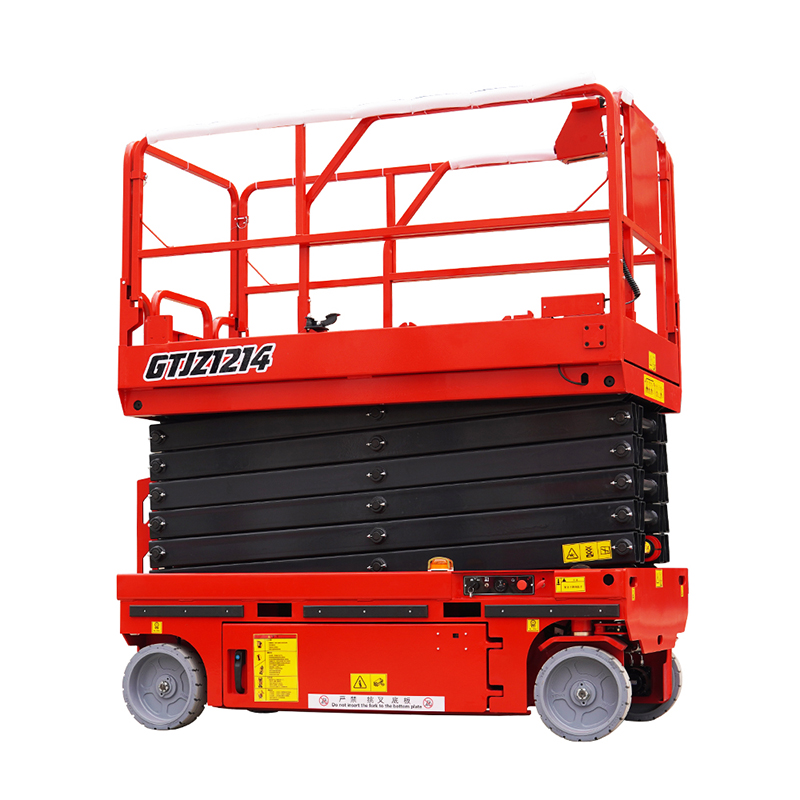

FULLY SELF-PROPELLED LIFTING PLATFORM
Product Overview
Welcome to our high-performance FULLY SELF-PROPELLED LIFTING PLATFORM, an integrated electric aerial work equipment that combines two core functions: full electric travelling and full electric hydraulic lifting. It requires no manual traction or external power supply. A single operator can complete all operations including travelling, steering and lifting while standing on the platform. The whole machine features a compact structure, small turning radius and flexible movement. The lifting process is smooth and the load-bearing performance is stable.
This equipment is professionally developed for equipment maintenance in factories, venue maintenance, supermarket decoration, indoor and outdoor high-altitude installation, high-level warehousing operations and many other scenarios. Equipped with a complete set of multi-layer safety protection systems, it boasts low noise, zero emissions, convenient movement and wide working range. It has become the core working equipment for aerial work, equipment maintenance and engineering construction in modern enterprises. Whether you work as a project manager, property administrator, factory operation and maintenance supervisor, decoration constructor or warehouse manager, our full self-propelled lifting platform can provide you with a safe, efficient and flexible one-stop solution for aerial operations.
Different from traditional manual lifting platforms and fixed scaffolding, this fully self-propelled model realizes full electric integration of all actions. Operators do not need to get on and off the equipment frequently or arrange extra ground staff for assistance, which greatly saves labor costs and improves overall working efficiency. Its compact size enables it to pass through standard doors and freight elevators smoothly, so it can switch freely between different floors and indoor spaces. The mature hydraulic system and reinforced scissor structure ensure excellent stability at high working heights. With reliable quality and comprehensive safety design, it has been widely applied in industrial, commercial, property and engineering fields, and is recognized as an ideal substitute for traditional aerial work tools.
| Model | Load | Weight | Lifting height | Platform size | Dimensions |
| HTGTJZ-6 | 450kg | 2100kg | 6m | 2270*1130mm | 2390*1160*2210mm |
| HTGTJZ-8 | 450kg | 2250kg | 8m | 2270*1130mm | 2390*1160*2340mm |
| HTGTJZ-8(Small) | 450kg | 2050kg | 8m | 2270*810mm | 2390*1160*2470mm |
| HTGTJZ-10 | 320kg | 2550kg | 10m | 2270*1130mm | 2390*1160*2470mm |
| HTGTJZ-12 | 320kg | 2950kg | 12m | 2270*1130mm | 2390*1160*2600mm |
| HTGTJZ-14 | 227kg | 3300kg | 14m | 2630*1130mm | 2790*1400*2600mm |
Specifications and Parameters
Power Type: Full electric travelling + full electric hydraulic lifting, lithium battery / lead-acid battery optional
Rated Load Capacity: 200kg – 350kg, customized according to actual operational requirements
Standard Working Height: 4m – 14m, customized heightened mast and extended platform are available
Body Material: High-strength manganese steel scissor structure, equipped with non-marking wear-resistant solid wheels
Control System: Integrated handle control on the platform, stepless speed regulation. One-button operation for lifting, travelling and steering with intuitive logic
Braking Performance: Electromagnetic disc brake, stable parking. It can be locked reliably on slopes to prevent sliding risks
Overall Dimensions: Compact size when retracted, able to pass standard doors and freight elevators normally, with excellent trafficability in narrow aisles
Chassis: Integrated reinforced chassis. Thickened and strengthened scissor arms, excellent deformation resistance and impact resistance, ensuring superior stability during high-altitude work
Compliance: Comply with national aerial work equipment safety standards, as well as international ISO and EN industry safety regulations
Product Features
Fully Autonomous Operation: Travelling, lifting and steering are all driven by electricity. No manual pushing or external power cord is needed. A single operator can finish the whole workflow on the platform, which greatly reduces labor costs and improves working efficiency.
Easy Operation: Adopts ergonomic integrated control handle with simple function buttons and stepless speed regulation. The lifting speed and travelling speed can be adjusted flexibly. Operators with zero experience can get skilled in a short time.
Comprehensive Safety Protection: Standard equipped with overload protection, lifting limiter, anti-fall oil cylinder, pothole protection, body tilt alarm, emergency stop button and safety guardrails. A full set of safety devices effectively avoid aerial work risks and protect personnel safety.
Low Noise & Eco-friendly: Powered by pure electricity, the machine runs with low noise and produces zero exhaust gas. It can be safely used in enclosed indoor spaces, shopping malls, hotels and food factories with high environmental requirements.
Flexible Trafficability: The machine is small when retracted with an ultra-small turning radius. It can work in large factory areas and outdoor sites, and also travel freely between indoor narrow aisles and different floors, featuring strong site adaptability.
Stable & Durable: Adopts thickened manganese steel scissor arms and reinforced chassis with uniform stress and good fatigue resistance. The core hydraulic and electrical accessories are of high quality. The whole machine has a low failure rate and remains stable under long-term frequent operation.
Low Maintenance & Fully Customizable: Modular structural design with neatly arranged components, making daily inspection and maintenance simple. Load capacity, working height, platform size and extended pedals can be customized on demand to adapt to diverse aerial working conditions.
Application Scenarios
Industrial Plants: Used for equipment maintenance, pipeline laying and high-level material sorting in production workshops, suitable for both indoor and outdoor aerial work.
Commercial Venues: Ideal for decoration, cleaning, lighting and circuit maintenance in large supermarkets, hotels, stadiums and exhibition centers. It moves flexibly without damaging the ground.
Warehouse & Logistics: Applied to high-level goods sorting, shelf installation and maintenance in stereoscopic warehouses and large storage depots, adapting to dense rack areas.
Property & Infrastructure: Used for maintenance and simple exterior construction of residential communities, office buildings and municipal supporting facilities, adaptable to various terrains.
Engineering Construction: Perfect for small decoration projects, electromechanical installation and outdoor sign erection. It replaces traditional scaffolding and improves the safety and mobility of operations.
Frequently Asked Questions (FAQ)
Q1: What is the lead time for a customized full self-propelled lifting platform?
A1: Standard models are always in stock and can be delivered promptly. For customized versions with modified working height, load capacity and platform structure, the lead time is generally 4 to 8 weeks, which will be adjusted according to specific configurations and total order quantity.
A1: Standard models are always in stock and can be delivered promptly. For customized versions with modified working height, load capacity and platform structure, the lead time is generally 4 to 8 weeks, which will be adjusted according to specific configurations and total order quantity.
Q2: Can the full self-propelled lifting platform work in low temperature and rainy conditions?
A2: The platform is designed with basic waterproof, anti-freeze and dust-proof performance. It can work normally on flat ground in low temperature and light rain.
Q3: Can we customize the load capacity, working height and extended pedals?
A3: Full customization is supported! We provide multiple models with load from 200kg to 350kg. Different working heights and platform dimensions are available, and extended pedals and upgraded guardrails can also be selected to meet various aerial work requirements.
Q4: What daily maintenance work is required for the full self-propelled lifting platform?
A4: Regularly check battery level, hydraulic oil level, scissor structure, wheels and braking system, and clean dust and sundries on the machine. Avoid storing the machine with insufficient power and long-time exposure to sunlight. Replace hydraulic oil and wearing parts periodically as required. The maintenance process is simple.
Q5: What advantages does the lithium battery version have over the lead-acid battery version in aerial work?
A5: Lithium batteries feature faster charging speed and longer cycle service life. The whole machine is lighter, more flexible to move at height and has more stable endurance. It requires no water refilling during use. Lead-acid batteries have higher cost performance and are suitable for low-frequency work in fixed sites. Both types can fully meet the power demands of the equipment.
Q6: Can the equipment work on inclined ground?
A6: The platform is equipped with tilt alarm and protection system. When the tilt angle exceeds the safety threshold, the travelling and lifting functions will be locked automatically, and the machine can only descend to a safe position.
Q7: Can you provide OEM/ODM services including logo, appearance and functional module customization?
A7: Yes. We provide comprehensive OEM and ODM customization services. We can customize brand logos, body colors and nameplates. Meanwhile, we also support personalized modifications on working height, load capacity, wheel sets and electronic control modules. Exclusive models can be designed according to industry working conditions.
